21H300-6FS10 Imperial Pitch Pulleys

21H300-6FS10, 21HB300, 21H300-1, 20181959, 114368, 21H300

Product Details for 21H300-6FS10

Comparable to: 21H300-6FS10, 21HB300, 21H300-1, 20181959, 114368, 21H300

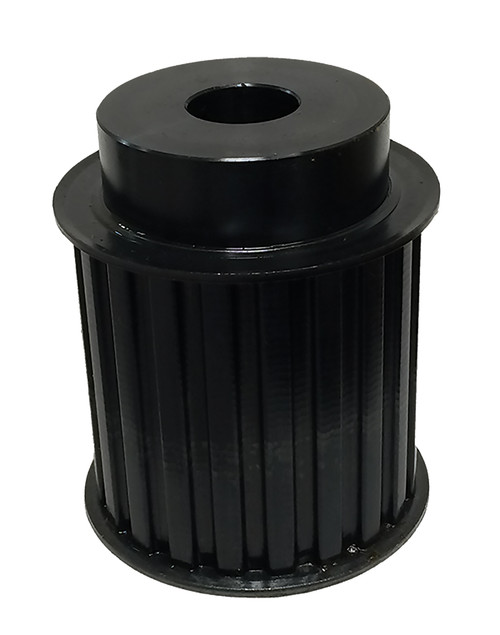

21H300-6FS10, Timing Pulley, Powerhouse Timing, 1 Inch Bore, Cast Iron

Specifications

Product Number 21H300-6FS10
Teeth 21
Tooth Style H
For Belt Width (in) 3.000
Type 6F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1
Pitch Diameter (in) 3.342
Outside Diameter (in) 3.288
Flange Diameter (in) 3.574
Face Width (in) 3.375
Overall Length (in) 4.187
Min. Bore (in) 1
Pulley Belt Width (in) 3.125
Unit System Inch
Weight (lb) 8.20
List Price (1-9 Qty.) (USD) 96.65
Discount Price (10-24 Qty.) (USD) 86.98
Discount Price (25-49 Qty.) (USD) 73.94
Part Number Cross Reference 21H300-6FS10, 21HB300, 21H300-1, 20181959, 114368, 21H300

Documentation

Download Catalog 2015_BBMAN_CATALOG_62.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 21H300-6FS10_REACH_cert
RoHS Certification 21H300-6FS10_RoHS_cert
