21L050-6FA6 Imperial Pitch Pulleys

21L050-6FA6, A 6A4-21DF05016, PT021J16L08T

Product Details for 21L050-6FA6

Comparable to: 21L050-6FA6, A 6A4-21DF05016, PT021J16L08T

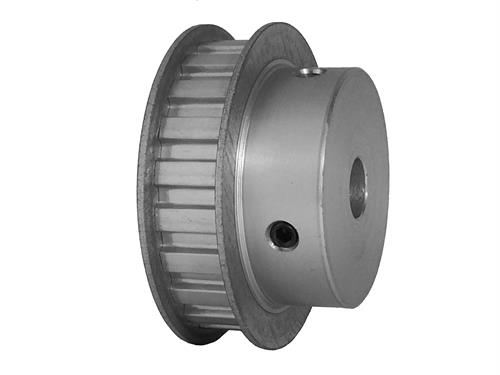

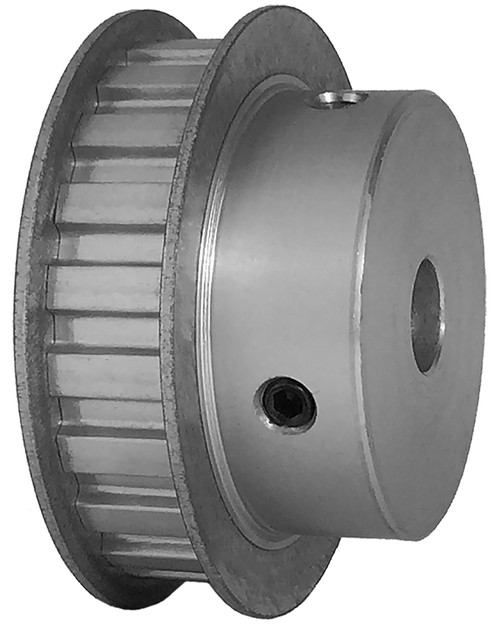

21L050-6FA6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Aluminum

Specifications

Product Number 21L050-6FA6
Teeth 21
Tooth Style L
For Belt Width (in) 0.500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.5
Pitch Diameter (in) 2.507
Outside Diameter (in) 2.477
Flange Diameter (in) 2.750
Face Width (in) 0.719
Overall Length (in) 1.375
Hub Diameter (in) 2.000
Set Screw 2 x 1/4-20 @ 90°
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.560
Unit System Inch
Weight (lb) 1.00
List Price (1-9 Qty.) (USD) 20.87
Discount Price (10-24 Qty.) (USD) 19.83
Discount Price (25-49 Qty.) (USD) 17.22
Discount Price (50-99 Qty.) (USD) 15.13
Discount Price (100-249 Qty.) (USD) 13.57
Part Number Cross Reference 21L050-6FA6, A 6A4-21DF05016, PT021J16L08T

Documentation

Download Catalog 2015_BBMAN_CATALOG_31.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 21L050-6FA6_REACH_cert
RoHS Certification 21L050-6FA6_RoHS_cert
