21LT312-6CA3, Timing Pulley

21LT312-6CA3 - Aluminum Imperial Pitch Pulleys

Product Details for 21LT312-6CA3

Comparable to: A 6A6-21DF03108, A6A6-21DF03108, 21M312-6A X 1/4

Click to Enlarge

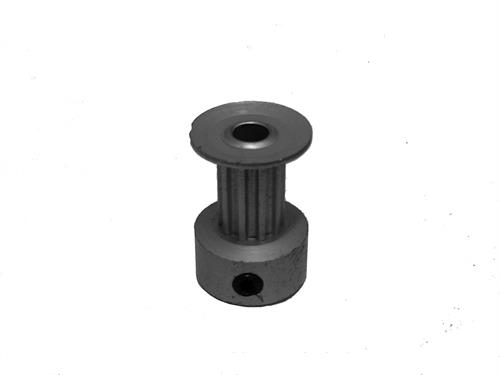

21LT312-6CA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21LT312-6CA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 21LT312-6CA3
Teeth 21
Tooth Style LT
For Belt Width (in) 0.3125
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.546
Outside Diameter (in) 0.532
Flange Diameter (in) 0.710
Face Width (in) 0.397
Overall Length (in) 0.625
Hub Diameter (in) 0.710
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.350
Unit System Inch
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A 6A6-21DF03108, A6A6-21DF03108, 21M312-6A X 1/4
Set Screw Quantity 2
