21MP012-6FA2 Imperial Pitch Pulleys

21MP012-6FA2, A 6N16-021DF1206, A6N16-021DF1206, PB21MXL012, 78260281, 21MP-012 3/16  6F, PT021A06L02T, TP7A3W2-

Product Details for 21MP012-6FA2

Comparable to: 21MP012-6FA2, A 6N16-021DF1206, A6N16-021DF1206, PB21MXL012, 78260281, 21MP-012 3/16 6F, PT021A06L02T, TP7A3W2-

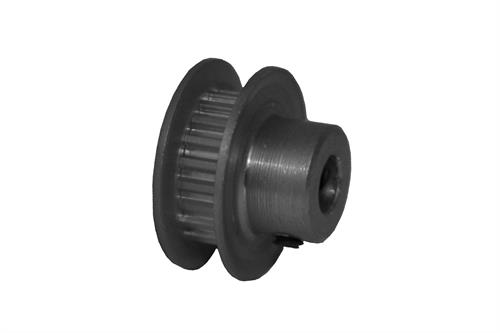

21MP012-6FA2, Timing Pulley, Powerhouse Timing, 3/16 Inch Bore, Aluminum

Specifications

Product Number 21MP012-6FA2
Teeth 21
Tooth Style MXL
For Belt Width (in) 0.125
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 3/16 Inch Finished Bore
Pitch Diameter (in) 0.535
Outside Diameter (in) 0.515
Flange Diameter (in) 0.710
Face Width (in) 0.260
Overall Length (in) 0.484
Hub Diameter (in) 0.390
Set Screw 2 x 4-40 @ 90°
Min. Bore (in) 0.188
Pulley Belt Width (in) 0.160
Unit System Inch
Max. Bore (in) 0.14
Weight (lb) 0.02
Part Number Cross Reference 21MP012-6FA2, A 6N16-021DF1206, A6N16-021DF1206, PB21MXL012, 78260281, 21MP-012 3/16 6F, PT021A06L02T, TP7A3W2-

Documentation

Download Catalog 2015_BBMAN_CATALOG_3.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
