21MP012M6FA5 Metric Pulleys

21MP012M6FA5, A 6N16M021DF3005, A6N16M021DF3005, TP7A5MW2-

Product Details for 21MP012M6FA5

Comparable to: 21MP012M6FA5, A 6N16M021DF3005, A6N16M021DF3005, TP7A5MW2-

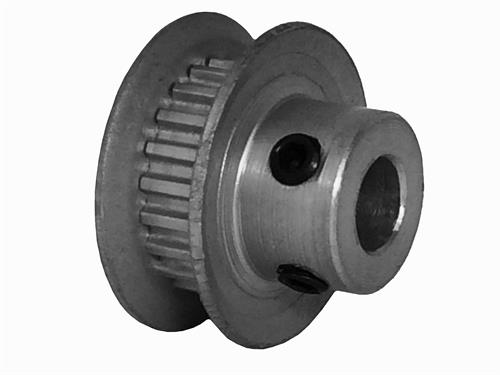

21MP012M6FA5, Timing Pulley, Powerhouse Timing, 5 mm Bore, Aluminum

Specifications

Product Number 21MP012M6FA5
Teeth 21
Tooth Style MXL
For Belt Width (in) 0.125
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 5.00
Face Width (in) 0.260
Set Screw 2 x M2 @ 90°
Pulley Belt Width (mm) 4.00
Unit System Metric
P.D. (mm) 13.60
O.D. (mm) 13.10
Flange Diameter (mm) 18.00
Face Width (mm) 6.60
Overall Length (mm) 12.30
Hub Diameter (mm) 9.90
Weight (lb) 0.02
Part Number Cross Reference 21MP012M6FA5, A 6N16M021DF3005, A6N16M021DF3005, TP7A5MW2-

Documentation

Download Catalog 2015_BBMAN_CATALOG_7.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 21MP012M6FA5_REACH_cert
RoHS Certification 21MP012M6FA5_RoHS_cert
