21MP037M6CA6 Metric Pulleys

21MP037M6CA6, A 6A16M021DF9506, A6A16M021DF9506

Product Details for 21MP037M6CA6

Comparable to: 21MP037M6CA6, A 6A16M021DF9506, A6A16M021DF9506

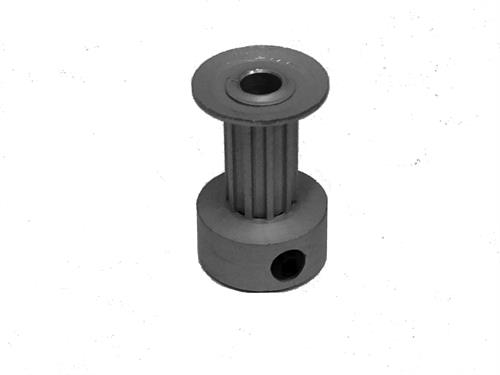

21MP037M6CA6, Timing Pulley, Powerhouse Timing, 6 mm Bore, Aluminum

Specifications

Product Number 21MP037M6CA6
Teeth 21
Tooth Style MXL
For Belt Width (in) 0.375
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 6.00
Face Width (in) 0.462
Set Screw 2 x M3 @ 90°
Pulley Belt Width (mm) 10.40
Unit System Metric
P.D. (mm) 13.60
O.D. (mm) 13.10
Flange Diameter (mm) 18.00
Overall Length (mm) 17.50
Hub Diameter (mm) 18.00
Weight (lb) 0.02
Part Number Cross Reference 21MP037M6CA6, A 6A16M021DF9506, A6A16M021DF9506

Documentation

Download Catalog 2015_BBMAN_CATALOG_11.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 21MP037M6CA6_REACH_cert
RoHS Certification 21MP037M6CA6_RoHS_cert
