21T5/16-2 Metric Pulleys

21T5/16-2, A 6A35M016DF1006, A6A35M016DF1006

Product Details for 21T5/16-2

Comparable to: 21T5/16-2, A 6A35M016DF1006, A6A35M016DF1006

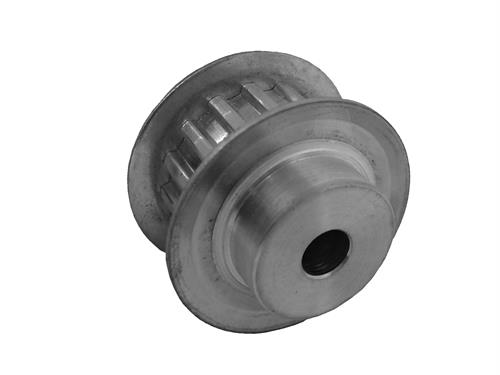

21T5/16-2, Timing Pulley, Powerhouse Timing, 6 mm Bore, Aluminum

Specifications

Product Number 21T5/16-2
Teeth 16
Tooth Style T5mm
Type 6F
Material Aluminum
Flange Material Steel
Bore Type Finished Bore
Bore (mm) 6.00
Pulley Belt Width (mm) 10.00
Unit System Metric
P.D. (mm) 25.60
O.D. (mm) 24.60
Flange Diameter (mm) 32.00
Face Width (mm) 15.00
Overall Length (mm) 21.00
Hub Diameter (mm) 18.00
Weight (lb) 0.06
Part Number Cross Reference 21T5/16-2, A 6A35M016DF1006, A6A35M016DF1006
