Product Details for 21XL037-3FA6

Comparable to: 21XL037-3FA6, A 6A3-21H3716, A6A3-21H3716

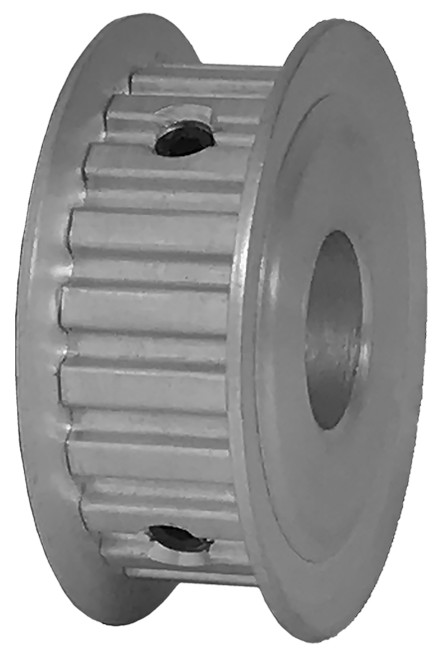

21XL037-3FA6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Aluminum

Our 21XL037-3FA6 Aluminum Imperial Pitch Pulleys are made from the highest quality materials & can meet any company's needs . Contact B&B Manufacturing today for a quote!

Specifications

Product Number 21XL037-3FA6
Teeth 21
Tooth Style XL
For Belt Width (in) 0.375
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 1.337
Outside Diameter (in) 1.317
Flange Diameter (in) 1.563
Face Width (in) 0.563
Overall Length (in) 0.563
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 1.0045
Weight (lb) 0.06
Part Number Cross Reference 21XL037-3FA6, A 6A3-21H3716, A6A3-21H3716
