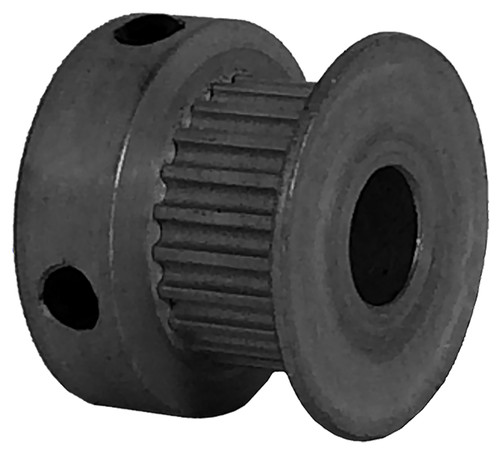

22-2P06-6CA3, Timing Pulley

22-2P06-6CA3

Click to Enlarge

22-2P06-6CA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22-2P06-6CA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	22-2P06-6CA3
Teeth	22
Tooth Style	2P
For Belt Width (mm)	6.00
Type	6C
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.551
Outside Diameter (in)	0.531
Flange Diameter (in)	0.740
Face Width (in)	0.326
Overall Length (in)	0.562
Hub Diameter (in)	0.740
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.290
Unit System	Inch
P.D. (mm)	14.00
O.D. (mm)	13.50
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	A 6A51-022DF0608, A6A51-022DF0608, 2MR-22S-06 X 1/4", 2MR-22S-06 X 1/4", TP2A2W6-22, 22-2GT06-6A X 1/4, 22-2P06-6CA3, 22-2P06-6CA3
Set Screw Quantity	2
