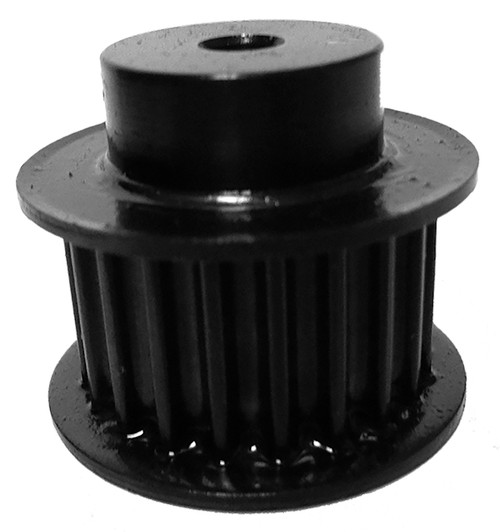

22-5P15-6FS5, Timing Pulley

22-5P15-6FS5 - Steel Powerhouse® Pulleys

22-5P15-6FS5

22-5P15-6FS5 - Steel Powerhouse® Pulleys Line Drawing

Click to Enlarge

22-5P15-6FS5, Timing Pulley, Steel, Black Oxide,

B&B Manufacturing carries 22-5P15-6FS5 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 22-5P15-6FS5
Teeth 22
Tooth Style 5P
For Belt Width (mm) 15.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.375
Bore Description 3/8 Inch Minimum Plain Bore
Pitch Diameter (in) 1.379
Outside Diameter (in) 1.334
Flange Diameter (in) 1.656
Face Width (in) 0.890
Overall Length (in) 1.280
Hub Diameter (in) 0.940
Pulley Belt Width (in) 0.710
Unit System Inch
P.D. (mm) 35.00
O.D. (mm) 33.90
MOQ 1
Weight (lb) 0.37
Part Number Cross Reference 22-5P15-6FS5, 22-5P15-6FS5
Set Screw Quantity 2
