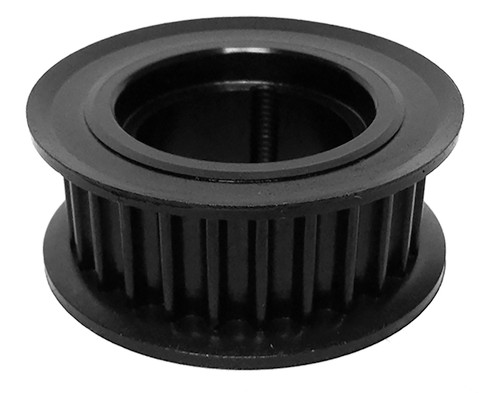

22-8P20-1108, Timing Pulley

22-8P20-1108 - Steel Powerhouse® Pulleys

22-8P20-1108

22-8P20-1108 - Steel Powerhouse® Pulleys Line Drawing

Click to Enlarge

22-8P20-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 22-8P20-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22-8P20-1108
Teeth 22
Tooth Style 8P
For Belt Width (mm) 20.00
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1108 Bushing
Pitch Diameter (in) 2.206
Outside Diameter (in) 2.152
Flange Diameter (in) 2.559
Face Width (in) 1.130
Overall Length (in) 1.130
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.890
Unit System Inch
Bushing 1108
P.D. (mm) 56.00
O.D. (mm) 54.70
MOQ 1
Weight (lb) 0.57
Part Number Cross Reference P22-8MGT-20, B228M20TL, 22-8P20-1108
