22LT312-6FA2, Timing Pulley

22LT312-6FA2 - Aluminum Imperial Pitch Pulleys

Product Details for 22LT312-6FA2

Comparable to: A 6A6-22DF03106, A6A6-22DF03106, PT22C06L04T

Click to Enlarge

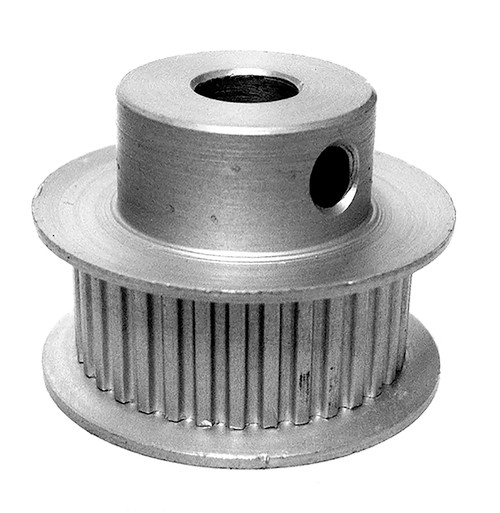

22LT312-6FA2, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22LT312-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22LT312-6FA2
Teeth 22
Tooth Style LT
For Belt Width (in) 0.3125
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 3/16 Inch Finished Bore
Pitch Diameter (in) 0.572
Outside Diameter (in) 0.558
Flange Diameter (in) 0.740
Face Width (in) 0.449
Overall Length (in) 0.688
Hub Diameter (in) 0.390
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.350
Unit System Inch
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A6-22DF03106, A6A6-22DF03106, PT22C06L04T
Set Screw Quantity 2
