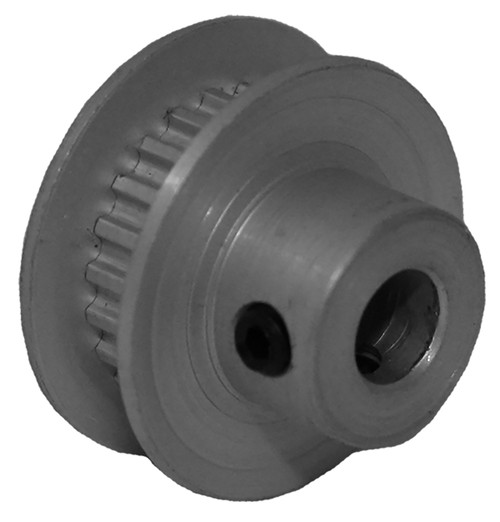

22MP012-6FA2, Timing Pulley

22MP012-6FA2 - Aluminum Imperial Pitch Pulleys

Product Details for 22MP012-6FA2

Comparable to: 22MP012-6FA2, A 6N16-022DF1206, A6N16-022DF1206, PB22MXL012, 78260282, 22MP-012 3/16 6F, PT022A06L02T, TP7A3W2-

22MP012-6FA2, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22MP012-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22MP012-6FA2
Teeth 22
Tooth Style MXL
For Belt Width (in) 0.125
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 3/16 Inch Finished Bore
Pitch Diameter (in) 0.560
Outside Diameter (in) 0.540
Flange Diameter (in) 0.740
Face Width (in) 0.260
Overall Length (in) 0.484
Hub Diameter (in) 0.390
Set Screw 2 x 4-40 @ 90°
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.160
Unit System Inch
Max. Bore (in) 0.14
Weight (lb) 0.01
Part Number Cross Reference 22MP012-6FA2, A 6N16-022DF1206, A6N16-022DF1206, PB22MXL012, 78260282, 22MP-012 3/16 6F, PT022A06L02T, TP7A3W2-
