22MP025-IA3, Timing Pulley

22MP025-IA3 - E-Z Lock Hub Aluminum Imperial Pitch Pulleys

Product Details for 22MP025-IA3

Comparable to: 22MP025-IA3, A 6D16-0202F2508, A6D16-0202F2508

Click to Enlarge

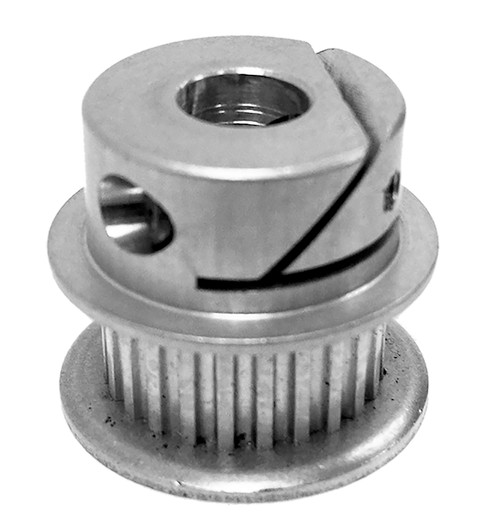

22MP025-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22MP025-IA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.


Product Number 22MP025-IA3
Teeth 22
Tooth Style MXL
For Belt Width (in) 0.250
Type 6CI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.560
Outside Diameter (in) 0.540
Flange Diameter (in) 0.740
Face Width (in) 0.389
Overall Length (in) 0.563
Hub Diameter (in) 0.625
Min. Bore (in) 0.250
Unit System Inch
Max. Bore (in) 0.25
Number & Screw Size 1 x 2-56
Weight (lb) 0.02
Part Number Cross Reference 22MP025-IA3, A 6D16-0202F2508, A6D16-0202F2508
