22XL037-3FA6, Timing Pulley

22XL037-3FA6 - Aluminum Imperial Pitch Pulleys

22XL037-3FA6

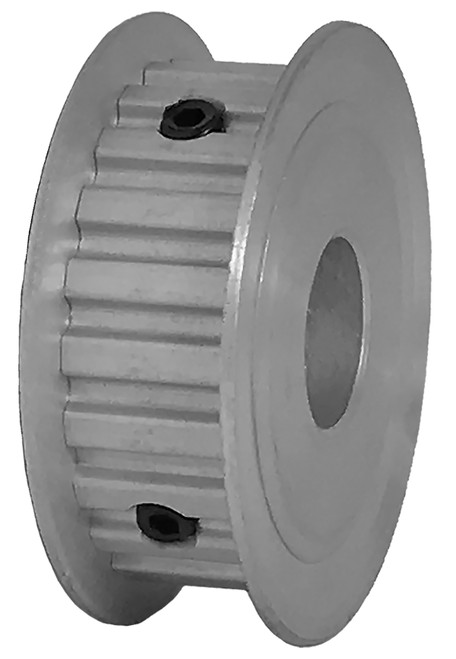

Click to Enlarge

22XL037-3FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22XL037-3FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22XL037-3FA6
Teeth 22
Tooth Style XL
For Belt Width (in) 0.3750
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 1.401
Outside Diameter (in) 1.381
Flange Diameter (in) 1.625
Face Width (in) 0.563
Overall Length (in) 0.563
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 36.00
O.D. (mm) 35.10
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference 22XL037-3FA6
Set Screw Quantity 2
