22XL037-6FS5, Timing Pulley

22XL037-6FS5 - Steel Imperial Pitch Pulleys

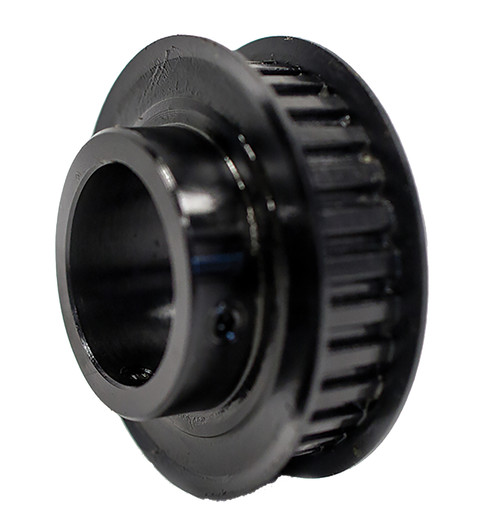

22XL037-6FS5

Click to Enlarge

22XL037-6FS5, Timing Pulley, Steel, Black Oxide,

Learn more about 22XL037-6FS5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22XL037-6FS5
Teeth 22
Tooth Style XL
For Belt Width (in) 0.3750
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 3/8 Inch Minimum Plain Bore
Pitch Diameter (in) 1.401
Outside Diameter (in) 1.381
Flange Diameter (in) 1.625
Face Width (in) 0.563
Overall Length (in) 0.875
Hub Diameter (in) 1.000
Min. Bore (in) 0.375
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 36.00
O.D. (mm) 35.10
MOQ 1
Weight (lb) 0.27
Part Number Cross Reference A 6C3-22DF03712, A6C3-22DF03712, 22XL037-1S X 3/8, 22XL037-6FS5
Set Screw Quantity 2
