23-5MX25-6FS5, Timing Pulley

23-5MX25-6FS5 - Steel Powerhouse® MX Pulleys

Product Details for 23-5MX25-6FS5

Comparable to: 23-5MX25-6FS5

Click to Enlarge

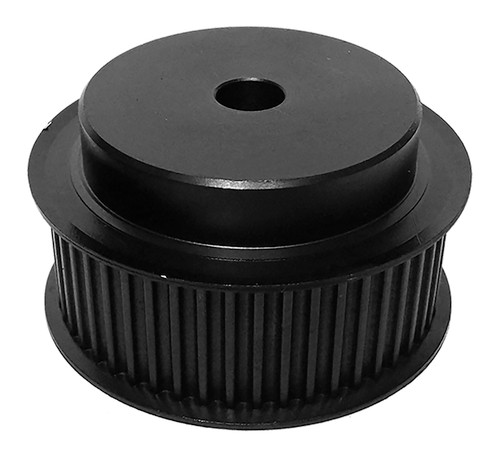

23-5MX25-6FS5, Timing Pulley, Steel, Black Oxide,

Learn more about 23-5MX25-6FS5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 23-5MX25-6FS5
Teeth 23
Tooth Style 5MX
For Belt Width (mm) 25
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 3/8 Inch Minimum Plain Bore
Pitch Diameter (in) 1.441
Outside Diameter (in) 1.396
Flange Diameter (in) 1.656
Face Width (in) 1.280
Overall Length (in) 1.680
Hub Diameter (in) 1.150
Min. Bore (in) 0.375
Pulley Belt Width (in) 1.100
Unit System Inch
MOQ 1
Weight (lb) 0.58
Part Number Cross Reference 23-5MX25-6FS5
