23-8M-PS10S, Timing Pulley Stock

23-8M-PS10S, 23-8M-PS-10S

Product Details for 23-8M-PS10S

Comparable to: 23-8M-PS10S, 23-8M-PS-1

Click to Enlarge

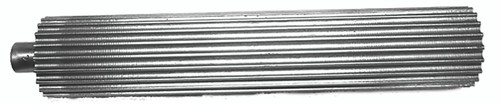

23-8M-PS10S, Timing Pulley Stock, Steel

Learn more about 23-8M-PS10S Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 23-8M-PS10S
Teeth 23
Tooth Style HTD 8mm
Material Steel
Pitch Diameter (in) 2.306
Outside Diameter (in) 2.252
Overall Length (in) 11.000
Unit System Inch
Min. Usable Length (in) 10.000
P.D. (mm) 58.60
O.D. (mm) 57.20
Weight (lb) 11.69
Part Number Cross Reference 23-8M-PS10S, 23-8M-PS-1
