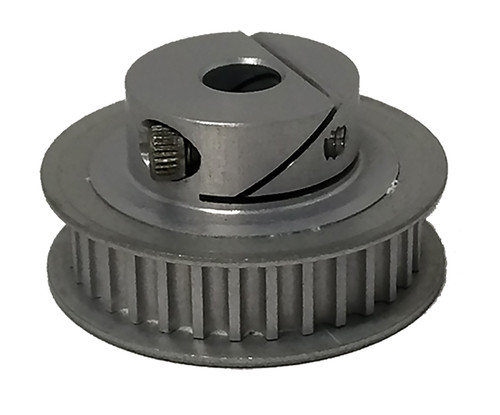

24-3M06-IA3, Timing Pulley

24-3M06-IA3 - E-Z Lock Hub Aluminum Powerhouse®HTD® Pulleys

24-3M06-IA3

Click to Enlarge

24-3M06-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24-3M06-IA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24-3M06-IA3
Teeth 24
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.902
Outside Diameter (in) 0.872
Flange Diameter (in) 1.025
Face Width (in) 0.386
Overall Length (in) 0.688
Hub Diameter (in) 0.625
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 23.00
O.D. (mm) 22.20
Number & Screw Size 1 x 2-56
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 24-3M06-IA3, 24-3M06-IA3
