24-3M09M6FA6, Timing Pulley

24-3M09M6FA6 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 24-3M09M6FA6

Comparable to: A 6A23M024DF0906, A6A23M024DF0906, 3M24X9, TP3A6W9M-24, 24-3M09M6FA6 AL HTD SPROCKET QTE, 21060041, 24 3M 9

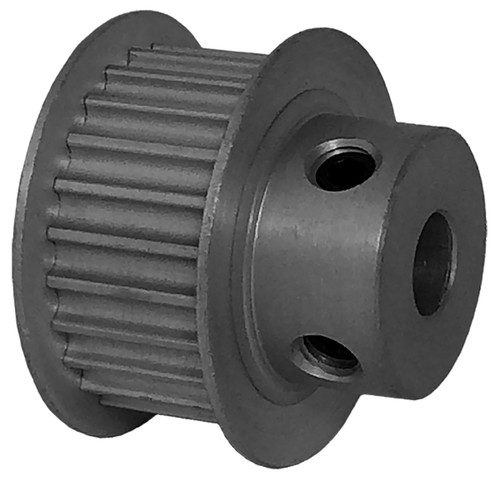

Click to Enlarge

24-3M09M6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24-3M09M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24-3M09M6FA6
Teeth 24
Tooth Style HTD 3mm
For Belt Width (mm) 9
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 6 mm Finished Bore
Bore (mm) 6.00
Pulley Belt Width (mm) 10.20
Unit System Metric
P.D. (mm) 22.90
O.D. (mm) 22.10
Flange Diameter (mm) 26.00
Face Width (mm) 12.80
Overall Length (mm) 20.60
Hub Diameter (mm) 15.90
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference A 6A23M024DF0906, A6A23M024DF0906, 3M24X9, TP3A6W9M-24, 24-3M09M6FA6 AL HTD SPROCKET QTE, 21060041, 24 3M 9
Set Screw Quantity 2
