24-8P20-1108 Powerhouse™ Pulleys

24-8P20-1108, P24-8MGT-20, B248M20TL, P24-8M-20-1108, 201827

Product Details for 24-8P20-1108

Comparable to: 24-8P20-1108, P24-8MGT-20, B248M20TL, P24-8M-20-1108, 201827

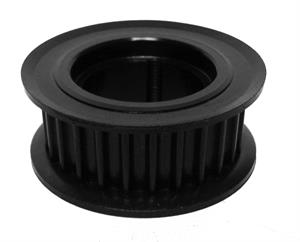

24-8P20-1108, Timing Pulley, Powerhouse, 1108 Bushing, Steel

Specifications

Product Number 24-8P20-1108
Teeth 24
Tooth Style GT 8mm
For Belt Width (mm) 20.000
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.406
Outside Diameter (in) 2.352
Flange Diameter (in) 2.756
Face Width (in) 1.130
Overall Length (in) 1.130
Pulley Belt Width (in) 0.890
Unit System Inch
Bushing 1108
Weight (lb) 0.76
Part Number Cross Reference 24-8P20-1108, P24-8MGT-20, B248M20TL, P24-8M-20-1108, 201827

Documentation

Download Catalog 2015_BBMAN_CATALOG_141.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 24-8P20-1108_REACH_cert
RoHS Certification 24-8P20-1108_RoHS_cert
