24H100-6FS10, Timing Pulley

24H100-6FS10

Buy Online

Download CAD View 3D Model Choose a CAD format

View Spec Sheet

Click to Enlarge

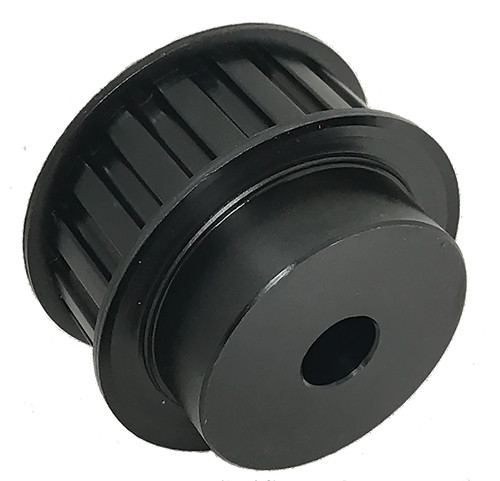

24H100-6FS10, Timing Pulley, Steel, Black Oxide,

B&B Manufacturing carries 24H100-6FS10 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	24H100-6FS10
Teeth	24
Tooth Style	H
For Belt Width (in)	1.0000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.000
Bore Description	1 Inch Minimum Plain Bore
Pitch Diameter (in)	3.820
Outside Diameter (in)	3.766
Flange Diameter (in)	4.050
Unit System	Inch
P.D. (mm)	97.00
O.D. (mm)	95.60
MOQ	1
Weight (lb)	6.00
Part Number Cross Reference	24H100-6FS10, 24H100-6FS10

Comparable to: 24H100-6FS10, 24H100-6FS10
