24L050-6FS6 Imperial Pitch Pulleys

24L050-6FS6, A 6C4-24DFB5016, 24LB050, 114307

Product Details for 24L050-6FS6

Comparable to: 24L050-6FS6, A 6C4-24DFB5016, 24LB050, 114307

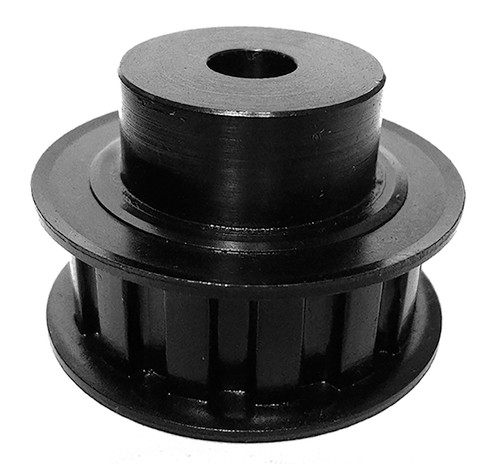

24L050-6FS6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Steel

Specifications

Product Number 24L050-6FS6
Teeth 24
Tooth Style L
For Belt Width (in) 0.500
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.5
Pitch Diameter (in) 2.865
Outside Diameter (in) 2.835
Flange Diameter (in) 3.094
Face Width (in) 0.750
Overall Length (in) 1.250
Hub Diameter (in) 2.250
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.570
Unit System Inch
Weight (lb) 2.13
List Price (1-9 Qty.) (USD) 32.61
Discount Price (10-24 Qty.) (USD) 29.35
Discount Price (25-49 Qty.) (USD) 25.68
Part Number Cross Reference 24L050-6FS6, A 6C4-24DFB5016, 24LB050, 114307

Documentation

Download Catalog 2015_BBMAN_CATALOG_32.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 24L050-6FS6_REACH_cert
RoHS Certification 24L050-6FS6_RoHS_cert
