24LT312-6FA3 Imperial Pitch Pulleys

24LT312-6FA3, A 6A6-24DF03108, PT024C08L04T

Product Details for 24LT312-6FA3

Comparable to: 24LT312-6FA3, A 6A6-24DF03108, PT024C08L04T

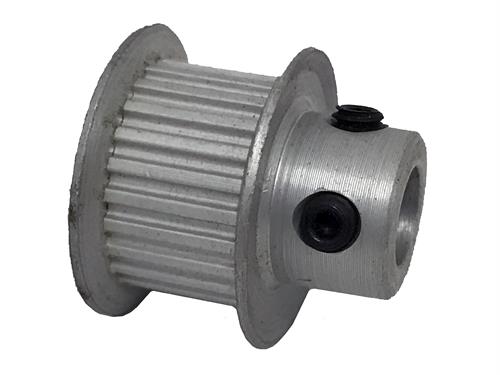

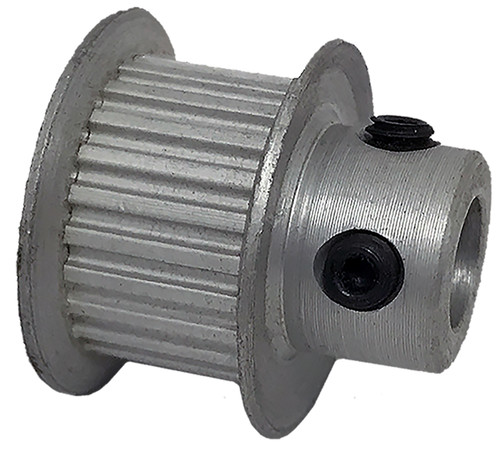

24LT312-6FA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Specifications

Product Number 24LT312-6FA3
Teeth 24
Tooth Style LT
For Belt Width (in) 0.313
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 0.624
Outside Diameter (in) 0.610
Flange Diameter (in) 0.790
Face Width (in) 0.449
Overall Length (in) 0.750
Hub Diameter (in) 0.442
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.350
Unit System Inch
Weight (lb) 0.02
List Price (1-9 Qty.) (USD) 9.23
Discount Price (10-24 Qty.) (USD) 8.77
Discount Price (25-49 Qty.) (USD) 7.39
Discount Price (50-99 Qty.) (USD) 5.54
Discount Price (100-249 Qty.) (USD) 5.08
Part Number Cross Reference 24LT312-6FA3, A 6A6-24DF03108, PT024C08L04T

Documentation

Download Catalog 2015_BBMAN_CATALOG_14.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 24LT312-6FA3_REACH_cert
RoHS Certification 24LT312-6FA3_RoHS_cert
