24MP025-6FA3, Timing Pulley

24MP025-6FA3 - Aluminum Imperial Pitch Pulleys

Product Details for 24MP025-6FA3

Comparable to: A 6A16-024DF2508, A6A16-024DF2508, PB24MXL025, 78260124, 24MP-025 1/4 6F, PT024A08L04T, TP7A4W4-24, 24MXL025-1A X 1/4, 1375K45

Click to Enlarge

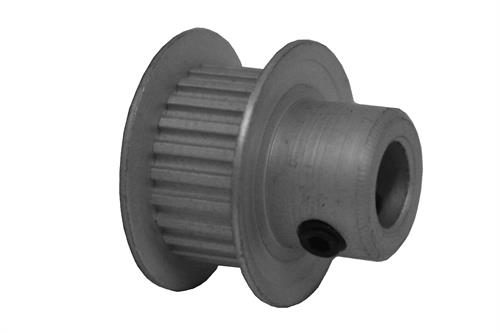

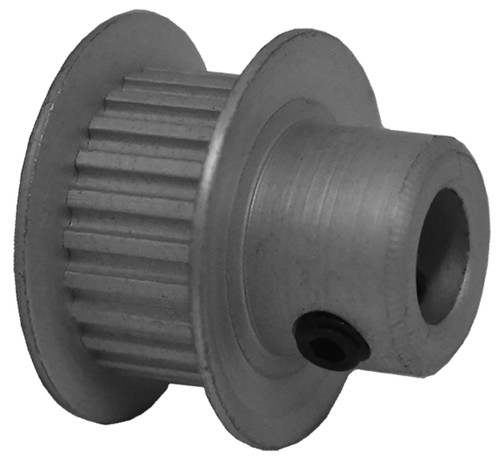

24MP025-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24MP025-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24MP025-6FA3
Teeth 24
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.611
Outside Diameter (in) 0.591
Flange Diameter (in) 0.790
Face Width (in) 0.389
Overall Length (in) 0.688
Hub Diameter (in) 0.442
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.290
Unit System Inch
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A16-024DF2508, A6A16-024DF2508, PB24MXL025, 78260124, 24MP-025 1/4 6F, PT024A08L04T, TP7A4W4-24, 24MXL025-1A X 1/4, 1375K45
Set Screw Quantity 2
