24XHQ200, Timing Pulley

24XHQ200 - Cast Iron Imperial Pitch Pulleys

24XHQ200

24XHQ200 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

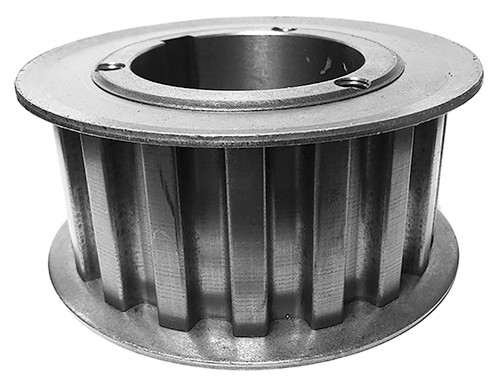

24XHQ200, Timing Pulley, Cast Iron

Learn more about 24XHQ200 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24XHQ200
Teeth 24
Tooth Style XH
For Belt Width (in) 2.0000
Type 10
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q1 Bushing
Pitch Diameter (in) 6.685
Outside Diameter (in) 6.575
Flange Diameter (in) 7.250
Face Width (in) 2.563
Overall Length (in) 2.781
Min. Bore (in) 0.75
Unit System Inch
Bushing Q1
P.D. (mm) 170.00
O.D. (mm) 167.00
MOQ 1
Weight (lb) 15.28
Part Number Cross Reference 24XHQ200, 24XHQ200, 24XHQ200
