24XHQ300, Timing Pulley

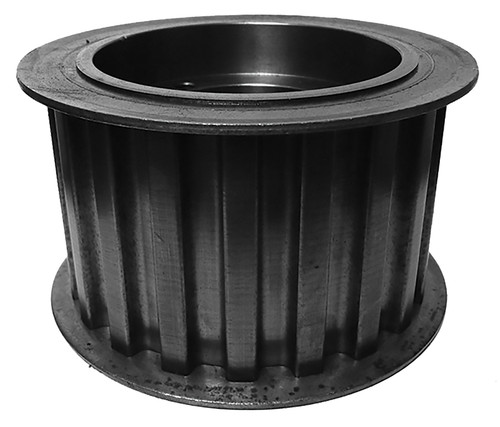

24XHQ300 - Cast Iron Imperial Pitch Pulleys

24XHQ300

24XHQ300 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

24XHQ300, Timing Pulley, Cast Iron

Learn more about 24XHQ300 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24XHQ300
Teeth 24
Tooth Style XH
For Belt Width (in) 3.0000
Type 10
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q2 Bushing
Pitch Diameter (in) 6.685
Outside Diameter (in) 6.575
Flange Diameter (in) 7.250
Face Width (in) 3.625
Overall Length (in) 3.781
Min. Bore (in) 1
Unit System Inch
Bushing Q2
P.D. (mm) 170.00
O.D. (mm) 167.00
MOQ 1
Weight (lb) 22.30
Part Number Cross Reference 24XHQ300, 24XHQ300, 24XHQ300
