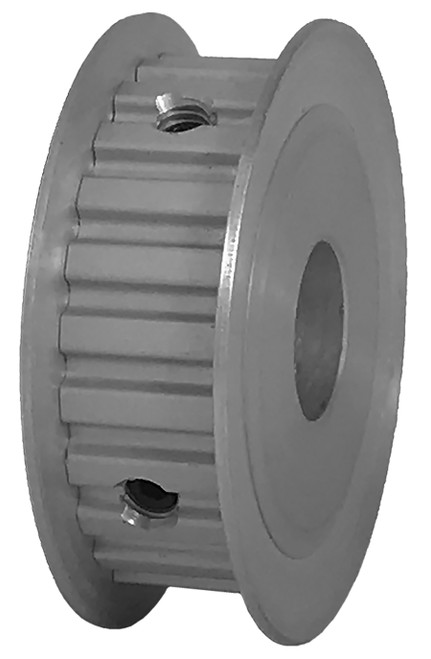

24XL037-3FA6, Timing Pulley

24XL037-3FA6 - Aluminum Imperial Pitch Pulleys

Product Details for 24XL037-3FA6

Comparable to: 24XL037-3FA6, A 6A3-24H3716, A6A3-24H3716

24XL037-3FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24XL037-3FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24XL037-3FA6
Teeth 24
Tooth Style XL
For Belt Width (in) 0.375
Type 3F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 1.528
Outside Diameter (in) 1.508
Flange Diameter (in) 1.750
Face Width (in) 0.563
Overall Length (in) 0.563
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.430
Unit System Inch
Max. Bore (in) 1.1955
Weight (lb) 0.09
Part Number Cross Reference 24XL037-3FA6, A 6A3-24H3716, A6A3-24H3716
