24XL037-6A6, Timing Pulley

24XL037-6A6

24XL037-6A6

24XL037-6A6 Line Drawing

Click to Enlarge

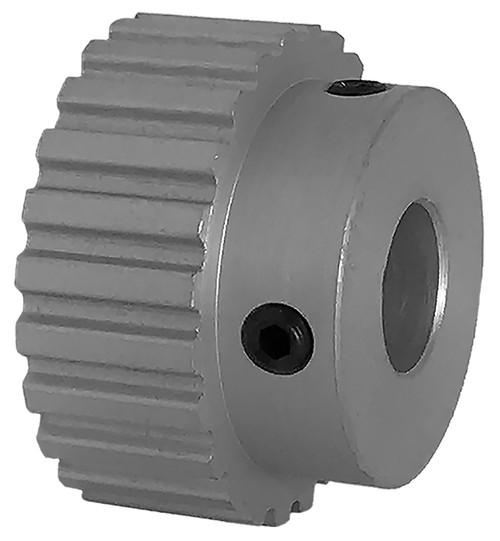

24XL037-6A6, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 24XL037-6A6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number 24XL037-6A6
Teeth 24
Tooth Style XL
For Belt Width (in) 0.3750
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.500
Bore Description 1/2 Inch Finished Bore
Pitch Diameter (in) 1.528
Outside Diameter (in) 1.508
Face Width (in) 0.563
Overall Length (in) 0.937
Hub Diameter (in) 1.188
Min. Bore (in) 0.5
Unit System Inch
P.D. (mm) 39.00
O.D. (mm) 38.30
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference 24XL037-6A6, 24XL037-6A6
Set Screw Quantity 2
