24XL037-6FS6, Timing Pulley

24XL037-6FS6 - Steel Imperial Pitch Pulleys

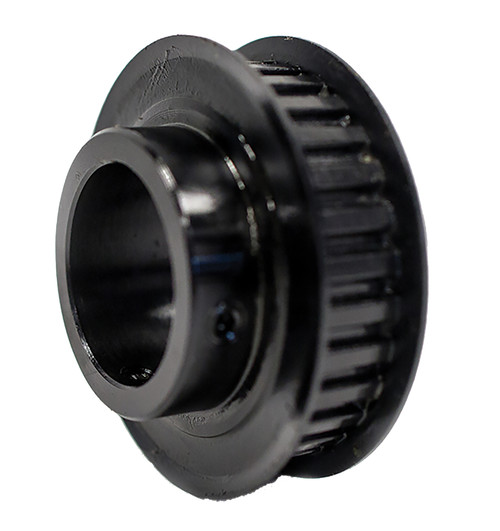

24XL037-6FS6

Click to Enlarge

24XL037-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 24XL037-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24XL037-6FS6
Teeth 24
Tooth Style XL
For Belt Width (in) 0.3750
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 1.528
Outside Diameter (in) 1.508
Flange Diameter (in) 1.750
Face Width (in) 0.563
Overall Length (in) 0.906
Hub Diameter (in) 1.063
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.430
Unit System Inch
P.D. (mm) 39.00
O.D. (mm) 38.30
MOQ 1
Weight (lb) 0.20
Part Number Cross Reference 24XL037-6FS6
Set Screw Quantity 2
