24XL037-IA3, Timing Pulley

24XL037-IA3

Buy Online

Download CAD View 3D Model Choose a CAD format

View Spec Sheet

Click to Enlarge

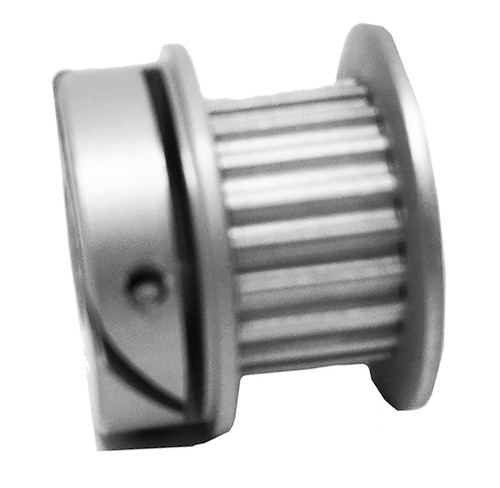

24XL037-IA3, Timing Pulley, Aluminum, Clear Anodized,

B&B Manufacturing carries 24XL037-IA3 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	24XL037-IA3
Teeth	24
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6FI
Material	Aluminum
Finish	Clear Anodized
Bore Type	EZ Lock
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.528
Outside Diameter (in)	1.508
Flange Diameter (in)	1.750
Unit System	Inch
P.D. (mm)	39.00
O.D. (mm)	38.30
MOQ	1
Weight (lb)	0.11
Part Number Cross Reference	24XL037-IA3, 24XL037-IA3
Set Screw Quantity	1

Comparable to: 24XL037-IA3, 24XL037-IA3
