24XXHR400, Timing Pulley

24XXHR400 - Cast Iron Imperial Pitch Pulleys

Product Details for 24XXHR400

Comparable to: 24XXHR400

Click to Enlarge

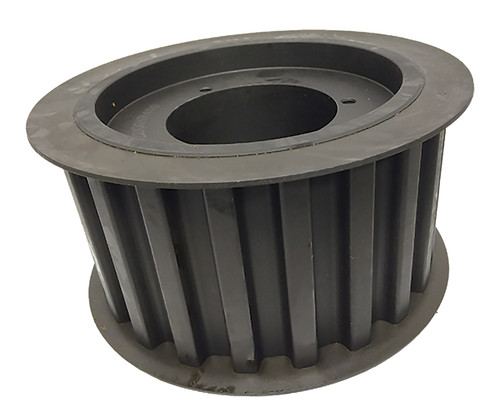

24XXHR400, Timing Pulley, Cast Iron

Learn more about 24XXHR400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24XXHR400
Teeth 24
Tooth Style XXH
For Belt Width (in) 4.000
Type 12
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore (in) R2
Pitch Diameter (in) 9.549
Outside Diameter (in) 9.429
Flange Diameter (in) 10.313
Face Width (in) 4.750
Overall Length (in) 5.156
Min. Bore (in) 1.375
Unit System Inch
Bushing R2
Max. Bore (in) 3.625
Weight (lb) 56.00
Part Number Cross Reference 24XXHR400
