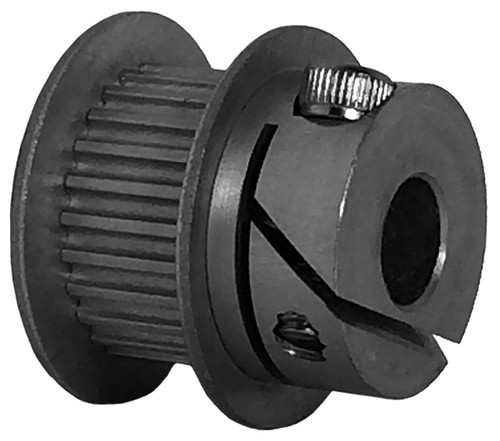

25-2P06-IA3, Timing Pulley

25-2P06-IA3 - E-Z Lock Hub Aluminum Powerhouse® Pulleys

25-2P06-IA3

25-2P06-IA3 - E-Z Lock Hub Aluminum Powerhouse® Pulleys Line Drawing

Click to Enlarge

25-2P06-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25-2P06-IA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25-2P06-IA3
Teeth 25
Tooth Style 2P
For Belt Width (mm) 6.00
Type 6CI
Material Aluminum
Finish Clear Anodized
Bore Type EZ Lock
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.627
Outside Diameter (in) 0.607
Flange Diameter (in) 0.815
Face Width (in) 0.389
Overall Length (in) 0.688
Hub Diameter (in) 0.625
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 16.00
O.D. (mm) 15.40
Number & Screw Size 1 x 4-40
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 25-2P06-IA3, 25-2P06-IA3
