25-3M06-6FA3, Timing Pulley

25-3M06-6FA3 - Aluminum Powerhouse®HTD® Pulleys

25-3M06-6FA3

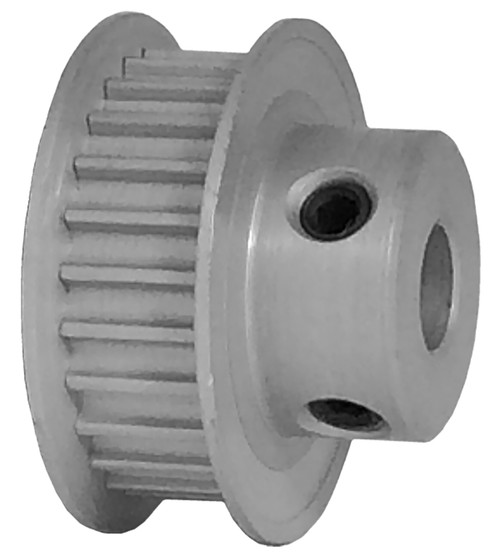

Click to Enlarge

25-3M06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25-3M06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25-3M06-6FA3
Teeth 25
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.940
Outside Diameter (in) 0.910
Flange Diameter (in) 1.060
Face Width (in) 0.386
Overall Length (in) 0.691
Hub Diameter (in) 0.625
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.280
Unit System Inch
P.D. (mm) 24.00
O.D. (mm) 23.10
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference A 6A23-025DF0608, A6A23-025DF0608, P25-3M-06AL, 25M3-L06M-6F, PT025F08L06T, 25-3M-06 X 1/4, 25-3M06-6FA3, 25-3M06-6FA3
Set Screw Quantity 2

Comparable to: A 6A23-025DF0608, A6A23-025DF0608, P25-3M-06AL, 25M3-L06M-6F, PT025F08L06T, 25-3M-06 X 1/4, 25-3M06-6FA3, 25-3M06-6FA3
