25-3M06M6FA6, Timing Pulley

25-3M06M6FA6

Click to Enlarge

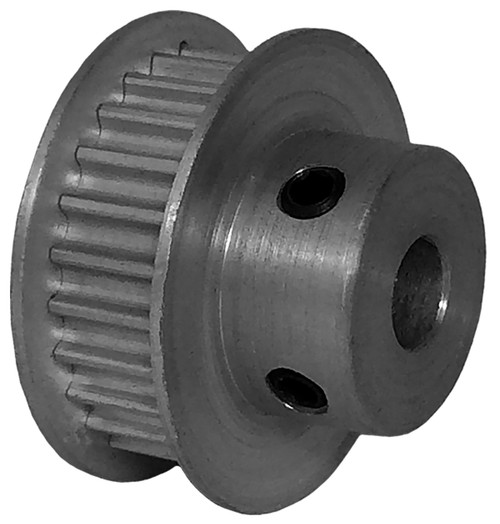

25-3M06M6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25-3M06M6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	25-3M06M6FA6
Teeth	25
Tooth Style	HTD3mm
For Belt Width (mm)	6.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore Description	6 mm Finished Bore
Bore (mm)	6.00
Pitch Diameter (in)	0.940
Outside Diameter (in)	0.910
Pulley Belt Width (mm)	7.20
Unit System	Metric
P.D. (mm)	24.00
O.D. (mm)	23.10
Flange Diameter (mm)	26.90
Face Width (mm)	9.80
Overall Length (mm)	17.50
Hub Diameter (mm)	15.90
MOQ	1
Weight (lb)	0.03
Part Number Cross Reference	A 6A23M025DF0606, A6A23M025DF0606, 25-3M06M6FA6, 25-3M06M6FA6
Set Screw Quantity	2
