25-5M09-6A3, Timing Pulley

25-5M09-6A3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 25-5M09-6A3

Comparable to: A 6A25-025NF0908, A6A25-025NF0908, PT025G08L09N

Click to Enlarge

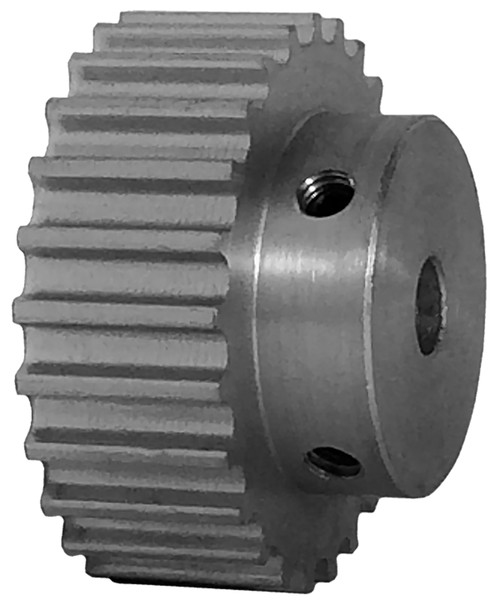

25-5M09-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25-5M09-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25-5M09-6A3
Teeth 25
Tooth Style HTD 5mm
For Belt Width (mm) 9
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.566
Outside Diameter (in) 1.521
Face Width (in) 0.546
Overall Length (in) 0.859
Hub Diameter (in) 1.000
Min. Bore (in) 0.250
Unit System Inch
MOQ 1
Weight (lb) 0.11
Part Number Cross Reference A 6A25-025NF0908, A6A25-025NF0908, PT025G08L09N
Set Screw Quantity 2
