25-8MX12-6FS6, Timing Pulley

25-8MX12-6FS6 - Steel Powerhouse® MX Pulleys

Product Details for 25-8MX12-6FS6

Comparable to: PB8MX-25S-12, 77151225, PB8MX25S12, TB 8M-25S-12, 2764611, PB8MCS-25-12, 25G-8M-12-MPB, 20839307, 8MPC25S12MPB, 8MX-25S-12-1108

Click to Enlarge

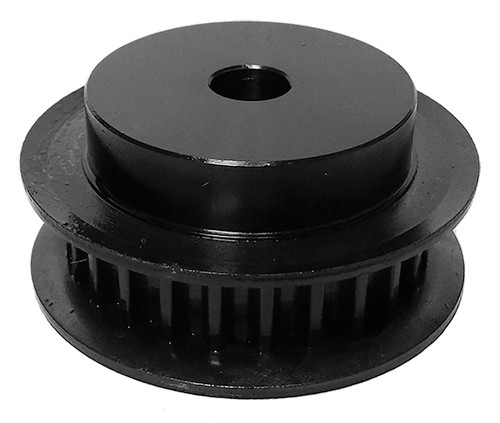

25-8MX12-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 25-8MX12-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25-8MX12-6FS6
Teeth 25
Tooth Style 8MX
For Belt Width (mm) 12
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 2.506
Outside Diameter (in) 2.443
Flange Diameter (in) 2.953
Face Width (in) 0.850
Overall Length (in) 1.313
Hub Diameter (in) 2.078
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.600
Unit System Inch
MOQ 1
Weight (lb) 1.54
Part Number Cross Reference PB8MX-25S-12, 77151225, PB8MX25S12, TB 8M-25S-12, 2764611, PB8MCS-25-12, 25G-8M-12-MPB, 20839307, 8MPC25S12MPB, 8MX-25S-12-1108
