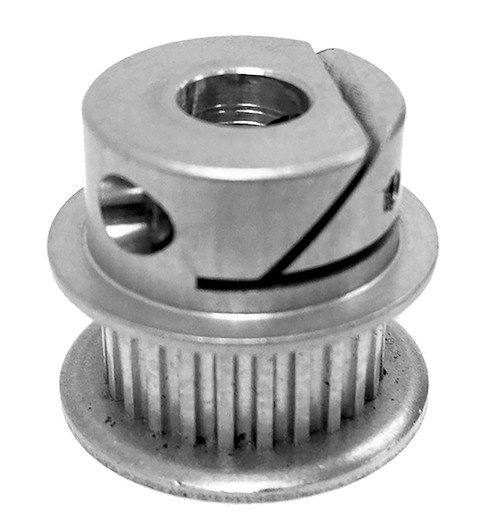

25MP025-IA3, Timing Pulley

25MP025-IA3

Click to Enlarge

25MP025-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25MP025-IA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	25MP025-IA3
Teeth	25
Tooth Style	MXL
For Belt Width (in)	0.2500
Type	6CI
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	EZ Lock
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	0.637
Outside Diameter (in)	0.617
Flange Diameter (in)	0.815
Face Width (in)	0.389
Overall Length (in)	0.688
Hub Diameter (in)	0.625
Min. Bore (in)	0.25
Unit System	Inch
P.D. (mm)	16.00
O.D. (mm)	15.70
Number & Screw Size	1 x 2-56
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	25MP025-IA3, 25MP025-IA3
