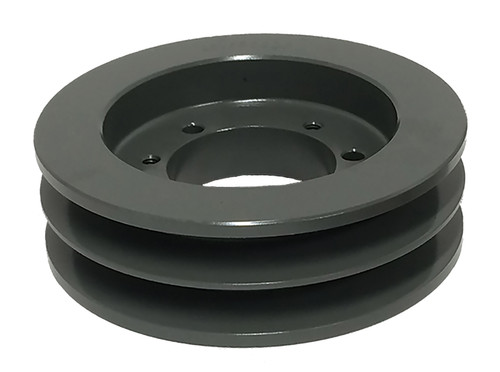

25V975SK, V-Belt Pulley

25V975SK

25V975SK, V-Belt Pulley, Cast Iron

Learn more about 25V975SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	25V975SK
Type	D-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	9.650
Outside Diameter (in)	9.750
Face Width (in)	1.688
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	15.50
Part Number Cross Reference	QD2/5V9.75, 25V975SK, 5V9.75-2-SK, 20180915, 2-5V9.75-SK SHEAVE, 5V9752, 2-5V9.75, 25V975SK, 455254, 25V975SK
Grooves	2
