26-3M06-6FA3, Timing Pulley

26-3M06-6FA3 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 26-3M06-6FA3

Comparable to: A 6A23-026DF0608, A6A23-026DF0608, P26-3M-06AL, 78820022, PT026F08L69T, 26-3M-06 X 1/4

Click to Enlarge

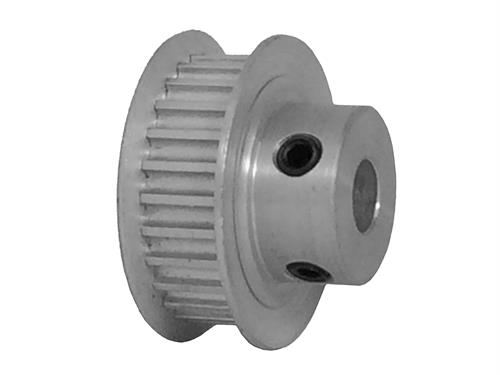

26-3M06-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 26-3M06-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26-3M06-6FA3
Teeth 26
Tooth Style HTD 3mm
For Belt Width (mm) 6
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.977
Outside Diameter (in) 0.947
Flange Diameter (in) 1.105
Face Width (in) 0.386
Overall Length (in) 0.691
Hub Diameter (in) 0.625
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.280
Unit System Inch
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference A 6A23-026DF0608, A6A23-026DF0608, P26-3M-06AL, 78820022, PT026F08L69T, 26-3M-06 X 1/4
Set Screw Quantity 2
