26-5M15M6FA8, Timing Pulley

26-5M15M6FA8 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 26-5M15M6FA8

Comparable to: A 6A25M026DF1508, A6A25M026DF1508

Click to Enlarge

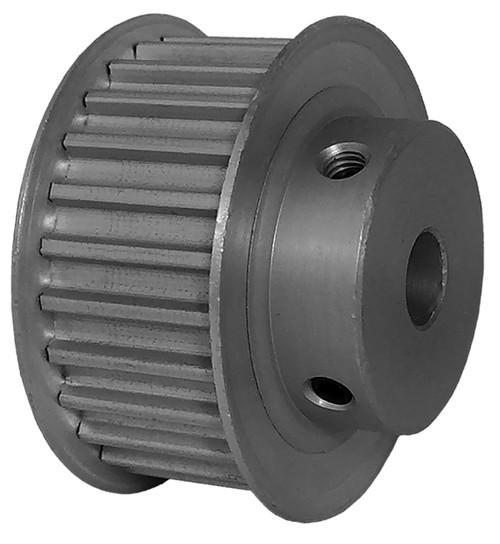

26-5M15M6FA8, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 26-5M15M6FA8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26-5M15M6FA8
Teeth 26
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 8 mm Finished Bore
Bore (mm) 8.00
Pulley Belt Width (mm) 16.50
Unit System Metric
P.D. (mm) 41.40
O.D. (mm) 40.20
Flange Diameter (mm) 44.50
Face Width (mm) 19.80
Overall Length (mm) 27.80
Hub Diameter (mm) 27.00
MOQ 1
Weight (lb) 0.15
Part Number Cross Reference A 6A25M026DF1508, A6A25M026DF1508
Set Screw Quantity 2
