26H300-6FS11, Timing Pulley

26H300-6FS11

Click to Enlarge

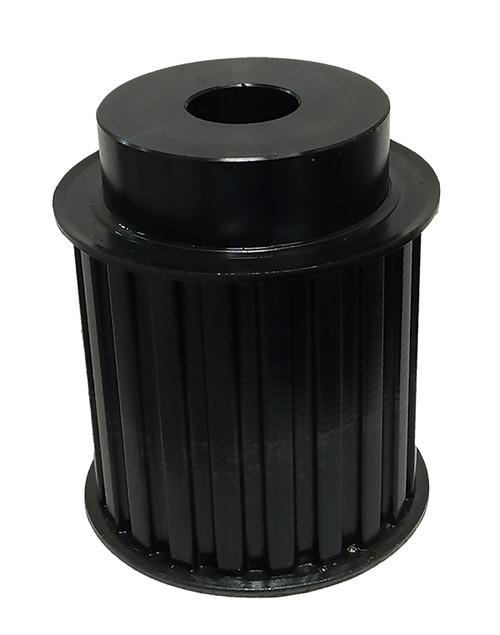

26H300-6FS11, Timing Pulley, Steel, Black Oxide,

Learn more about 26H300-6FS11 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	26H300-6FS11
Teeth	26
Tooth Style	H
For Belt Width (in)	3.0000
Type	6F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	1.125
Bore Description	1-1/8 Inch Minimum Plain Bore
Pitch Diameter (in)	4.138
Outside Diameter (in)	4.084
Flange Diameter (in)	4.369
Face Width (in)	3.375
Overall Length (in)	4.437
Hub Diameter (in)	3.375
Min. Bore (in)	1.125
Pulley Belt Width (in)	3.125
Unit System	Inch
P.D. (mm)	105.00
O.D. (mm)	103.70
MOQ	1
Weight (lb)	12.49
Part Number Cross Reference	26H300, 26HB300, 26H300 X 1-1/8 MPB, 26H300MPB, P26H300, P26H300-PB, 26H300-6FS11, 114371, 26H300-6FS11
