26L050-6FS6, Timing Pulley

26L050-6FS6 - Steel Imperial Pitch Pulleys

26L050-6FS6

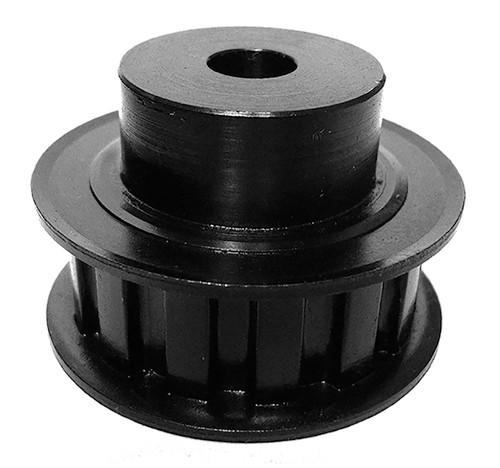

Click to Enlarge

26L050-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 26L050-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26L050-6FS6
Teeth 26
Tooth Style L
For Belt Width (in) 0.5000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 3.104
Outside Diameter (in) 3.074
Flange Diameter (in) 3.330
Face Width (in) 0.750
Overall Length (in) 1.250
Hub Diameter (in) 2.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.570
Unit System Inch
P.D. (mm) 79.00
O.D. (mm) 78.10
MOQ 1
Weight (lb) 1.92
Part Number Cross Reference A 6C4-26DFB5016, A6C4-26DFB5016, 26L050, 26 L 050, 26LB050, 114308, 26L050MPB, P26L050, M26L050, 26L050-6FS6

Related Products

Comparable to: A 6C4-26DFB5016, A6C4-26DFB5016, 26L050, 26 L 050, 26LB050, 114308, 26L050MPB, P26L050, M26L050, 26L050-6FS6
