26XH400-6FS10, Timing Pulley

26XH400-6FS10 - Steel Imperial Pitch Pulleys

26XH400-6FS10

Click to Enlarge

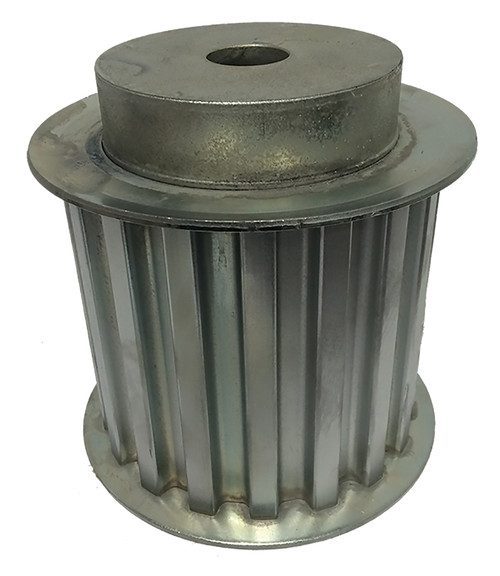

26XH400-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 26XH400-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26XH400-6FS10
Teeth 26
Tooth Style XH
For Belt Width (in) 4.0000
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1 Inch Minimum Plain Bore
Pitch Diameter (in) 7.242
Outside Diameter (in) 7.132
Flange Diameter (in) 7.750
Face Width (in) 4.688
Overall Length (in) 5.938
Hub Diameter (in) 3.250
Min. Bore (in) 1.000
Unit System Inch
P.D. (mm) 184.00
O.D. (mm) 181.10
MOQ 1
Weight (lb) 60.80
Part Number Cross Reference 26XHB400, 26XH400-6FS10
