26XHQ400, Timing Pulley

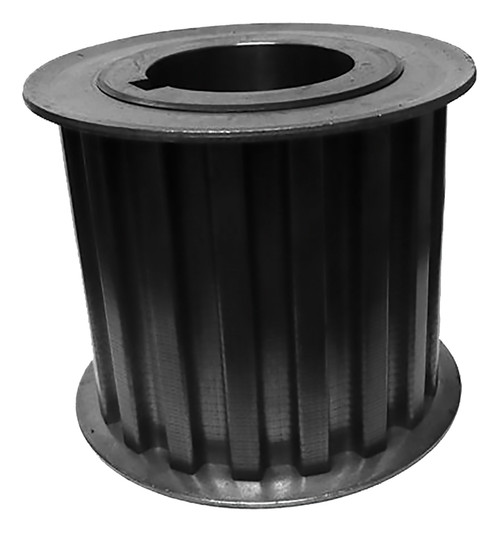

26XHQ400 - Cast Iron Imperial Pitch Pulleys

26XHQ400

26XHQ400 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

26XHQ400, Timing Pulley, Cast Iron

Learn more about 26XHQ400 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 26XHQ400
Teeth 26
Tooth Style XH
For Belt Width (in) 4.0000
Type 11
Material Steel
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for Q2 Bushing
Pitch Diameter (in) 7.242
Outside Diameter (in) 7.132
Flange Diameter (in) 7.750
Face Width (in) 4.688
Overall Length (in) 4.969
Min. Bore (in) 1
Unit System Inch
Bushing Q2
P.D. (mm) 184.00
O.D. (mm) 181.10
MOQ 1
Weight (lb) 32.13
Part Number Cross Reference 26XHQ400, 26XHQ400, 26XHQ400
