27T5-PS160A, Timing Pulley Stock

27T5-PS160A, A6A34M027T16, A 6A34M027T16, 27T5-PS-160

Product Details for 27T5-PS160A

Comparable to: A 6A34M027T16, A6A34M027T16, 27T5-PS-160, T527

Click to Enlarge

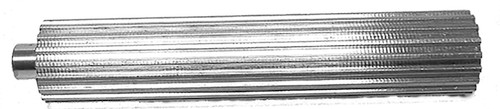

27T5-PS160A, Timing Pulley Stock, Aluminum

Learn more about 27T5-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 27T5-PS160A
Teeth 27
Tooth Style T5mm
Material Aluminum
Pitch Diameter (in) 1.701
Outside Diameter (in) 1.661
Overall Length (in) 7.100
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 43.20
O.D. (mm) 42.20
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 1.32
Part Number Cross Reference A 6A34M027T16, A6A34M027T16, 27T5-PS-160, T527
Shank Length (in) 0.8000
