28-14M85-6FS13, Timing Pulley

28-14M85-6FS13 - Steel Powerhouse®HTD® Pulleys

Product Details for 28-14M85-6FS13

Comparable to: P28-14M-85-MPB, P28-14M-85

Click to Enlarge

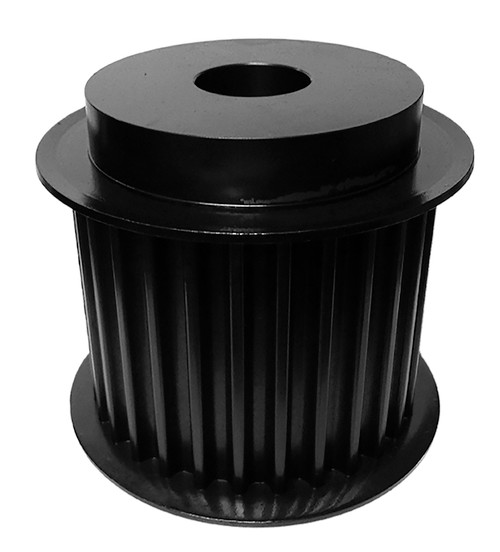

28-14M85-6FS13, Timing Pulley, Steel, Black Oxide,

Learn more about 28-14M85-6FS13 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28-14M85-6FS13
Teeth 28
Tooth Style HTD 14mm
For Belt Width (mm) 85
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1-1/4 Inch Minimum Plain Bore
Pitch Diameter (in) 4.912
Outside Diameter (in) 4.802
Flange Diameter (in) 5.560
Face Width (in) 4.000
Overall Length (in) 4.000
Hub Diameter (in) 3.688
Min. Bore (in) 1.250
Unit System Inch
MOQ 1
Weight (lb) 18.00
Part Number Cross Reference P28-14M-85-MPB, P28-14M-85
