28-3M06M6A6, Timing Pulley

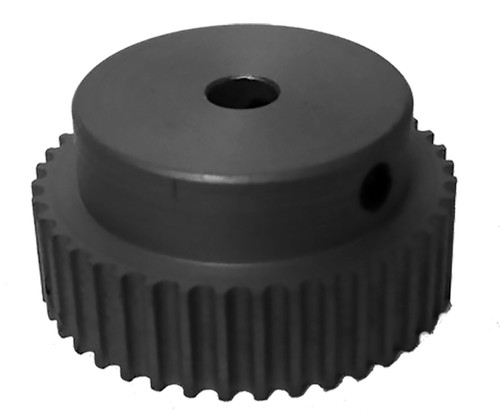

28-3M06M6A6 - Aluminum Powerhouse®HTD® Pulleys

28-3M06M6A6

28-3M06M6A6 - Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

28-3M06M6A6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 28-3M06M6A6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28-3M06M6A6
Teeth 28
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.053
Outside Diameter (in) 1.023
Pulley Belt Width (mm) 6.00
Unit System Metric
P.D. (mm) 27.00
O.D. (mm) 26.00
Face Width (mm) 9.80
Overall Length (mm) 17.50
Hub Diameter (mm) 17.80
MOQ 1
Weight (lb) 0.04
Part Number Cross Reference A 6A23M028NF0606, A6A23M028NF0606, 28-3M06M6A6, 28-3M06M6A6
Set Screw Quantity 2
