28-8M50-6FS6, Timing Pulley

28-8M50-6FS6

Buy Online

Download CAD View 3D Model Choose a CAD format

View Spec Sheet

Click to Enlarge

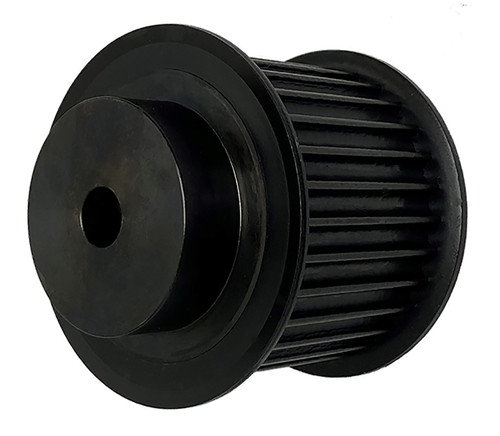

28-8M50-6FS6, Timing Pulley, Steel, Black Oxide,

B&B Manufacturing carries 28-8M50-6FS6 to accommodate the different industries we serve. Contact us today for a free quote!

Specifications

Product Number	28-8M50-6FS6
Teeth	28
Tooth Style	HTD8mm
For Belt Width (mm)	50.00
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	2.807
Outside Diameter (in)	2.755
Flange Diameter (in)	3.150
Unit System	Inch
P.D. (mm)	71.00
O.D. (mm)	70.00
MOQ	1
Weight (lb)	0.50
Part Number Cross Reference	20182258, 28-8M50-6FS6, 28-8M50-6FS6

Comparable to: 20182258, 28-8M50-6FS6, 28-8M50-6FS6
