28HP150, Timing Pulley

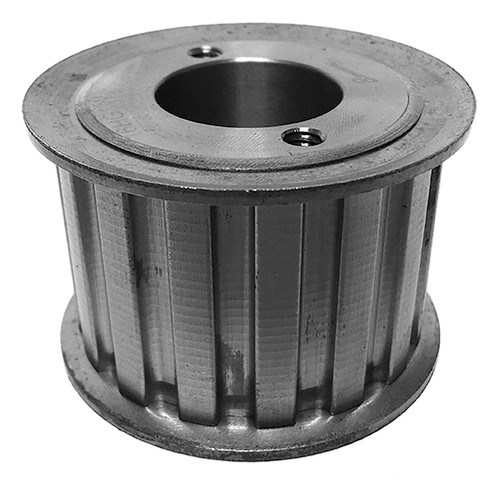

28HP150 - Cast Iron Imperial Pitch Pulleys

28HP150

28HP150 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

28HP150, Timing Pulley, Cast Iron

Learn more about 28HP150 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 28HP150
Teeth 28
Tooth Style H
For Belt Width (in) 1.5000
Type 6
Material Ductile Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 4.456
Outside Diameter (in) 4.402
Flange Diameter (in) 4.688
Face Width (in) 1.750
Overall Length (in) 2.625
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 113.00
O.D. (mm) 111.80
MOQ 1
Weight (lb) 5.62
Part Number Cross Reference 28HP150, 28HP150, 28HP150
